ElectroSport ESR100 Replacement Regulator/Rectifier for Suzuki GS models
-
Part Number ESR100
- Better than OEM replacement Regulator/Rectifier
- Plug in replacement unit
- Uses our latest regulation circuitry for optimum system voltage
- Manufactured with modern high grade components for optimal performance
- Comes with a Full One Year Warranty

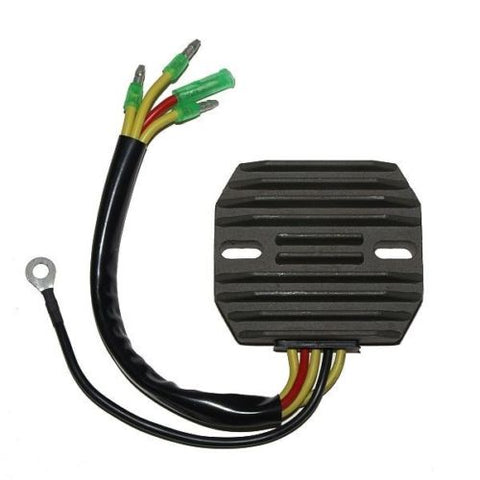

ESR100 is a high quality regulator/rectifier that replaces the not-so-reliable OEM regulator on many older Suzukis. Power handling of our ESR100 regulator/rectfier is superior, and this part is a plug in replacement on many Suzuki models. We have incorporated a heat sink that gets rid of internal heat to the housing quickly and efficiently, making for a very reliable unit. This regulator/rectifier regulates all three phases coming from the stator, unlike the stock unit which only regulates 1 or 2 phases (depending on the model). Three phase regulation is a major step towards reliability on these Suzuki GS models. Like all regulator/rectifiers manufactured by ElectroSport ESR100 also comes with a full one year warranty.
Fits
Wire length: 180mm
Input: 3x Yellow
+12V Output: Red
Ground: Black.
1980-81 Suzuki GS250
1977-78 Suzuki GS400B/C
1979 Suzuki GS425
1980-82 Suzuki GS450T/E/S models
1977-80 Suzuki GS550 8-valve models
1981-82 Suzuki GS550
1976-80 Suzuki GS750 8-valve models
1980-83 Suzuki GS750E / GSX750 (16-valve models)
1979 Suzuki GS850GN
1980-81 Suzuki GS850G
1978-79 Suzuki GS1000
1980-81 Suzuki GS1000G (shaft drive)
1979-80 Suzuki GS1000S (small fairing)
1980-81 Suzuki GS1100E/ET/EZ (GSX1100E)
1983 Suzuki GS1100S Katana (GSX1100 Katana)
Tire Diameter Speed Rating Load Rating Wall Construction Tire Tube Type Rim Size Product Line Electrosport Plug-In Regulator|Rectifier Part Number ESR100 Fitment Type Unit Sale Qty Style Material Color Size Finish Position Functional Length Cable Sleeve Length Cable Sleeve Travel Driver Seat Length Passenger Seat Length Driver Seat Width Passenger Seat Width Piston/Cylinder Size Piston Size Added Cylinder Stroke Volume Final Engine Displacement Exhaust Configuration Muffler Size Muffler End/Tip Style Windshield Height Windshield Width Handlebar Diameter Ca ARB Compliance Non CARB Complaint CARB Compliant Product Disclaimer 1976 Suzuki GS750 8-valve models
1977 Suzuki GS400B/C
1977 Suzuki GS550 8-valve models
1977 Suzuki GS750 8-valve models
1978 Kawasaki KZ1000 Z1R
1978 Suzuki GS1000
1978 Suzuki GS400B/C
1978 Suzuki GS550 8-valve models
1978 Suzuki GS750 8-valve models
1979 Suzuki GS1000
1979 Suzuki GS1000S
1979 Suzuki GS425
1979 Suzuki GS550 8-valve models
1979 Suzuki GS750 8-valve models
1979 Suzuki GS850GN
1980 Suzuki GS1000G - shaft drive
1980 Suzuki GS1000S
1980 Suzuki GS1100E / GSX1100E
1980 Suzuki GS250
1980 Suzuki GS450T/E/S models
1980 Suzuki GS550 8-valve models
1980 Suzuki GS750 8-valve models
1980 Suzuki GS750E / GSX750 - 16-valve
1980 Suzuki GS850G
1981 Suzuki GS1000G - shaft drive
1981 Suzuki GS1100E / GSX1100E
1981 Suzuki GS250
1981 Suzuki GS450T/E/S models
1981 Suzuki GS550
1981 Suzuki GS750E / GSX750 - 16-valve
1981 Suzuki GS850G
1982 Suzuki GS450T/E/S models
1982 Suzuki GS550
1982 Suzuki GS750E / GSX750 - 16-valve
1983 Suzuki GS1100S Katana / GSX1100 Katana
1983 Suzuki GS750E / GSX750 - 16-valve -
