High Lifter Signature Series 4 Inch Lift Kit
Part Number: PLK900R-50
- Relocate your shock mounts and get the lift need for tighter suspension and larger mud tires
- Increase your ground clearance and make room for larger tires to dig deep and ride hard in most any terrain
- All hardware needed for successful installation with User-friendly instructions
- Bolt-on application; takes approximately 1-2 hours for install
- Zinc Plated Front and Rear Lift Kit
- Clear-coated High Lifter name plate
- Made in the USA

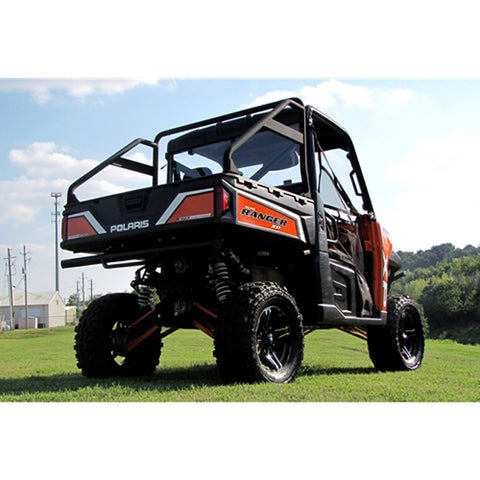

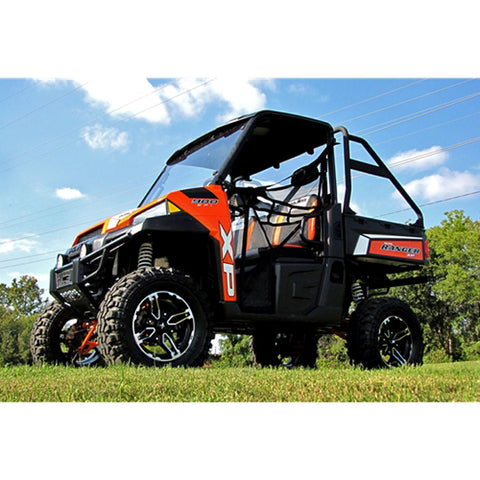

Bigger. Badder. BOLDER. Take your ATV to the edge with High Lifter’s 4” Signature Series Lift Kit. Increase your ground clearance and make room for larger tires to dig deep and ride hard in most any terrain. Our engineers and staff have spent over 15 years perfecting the ultimate ATV lift kit. The product? An easy-to-install, bolt-on lift that consistently measures truer over competitor products. The High Lifter 4” Lift Kit relocates the shock mounts to provide additional lift making room for larger tires and tightens suspension. Each Lift Kit part is precision cut and zinc plated for durability and reliability in any environment.
- This lift kit will not fit any 2016 570 XP Full Size Ranger with front strut suspension.
- This lift kit will not fit the Polaris Ranger Northstar Edition.
- 1.5" spacers are required in the rear if you are running factory 900 Ranger steel wheels.
Tire Fitment: Up to 27 Inch (With Upgraded Control Arms - Up to 30")
- Our stated tire fitment guide is a general fitment and is in no way guaranteed.
- Tires and lifts vary by manufacture and tire fitment can be affected by other modifications.
- Always verify your brand of tires, lift, and other modifications prior to making a buying decision.
Tire Diameter Speed Rating Load Rating Wall Construction Tire Tube Type Rim Size Product Line High Lifter Signature Series Lift Kit Part Number PLK900R-50 Fitment Type Unit Sale Qty Kit Style 4 Inch Lift Kit Material Steel Color Size 4 Inch Lift Finish Zinc Plated Position Front & Rear Functional Length Cable Sleeve Length Cable Sleeve Travel Driver Seat Length Passenger Seat Length Driver Seat Width Passenger Seat Width Piston/Cylinder Size Piston Size Added Cylinder Stroke Volume Final Engine Displacement Exhaust Configuration Muffler Size Muffler End/Tip Style Windshield Height Windshield Width Handlebar Diameter Ca ARB Compliance Non CARB Complaint CARB Compliant Product Disclaimer

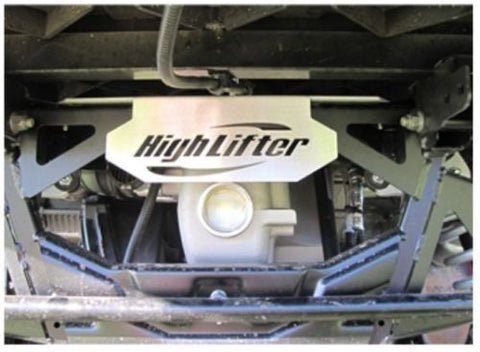

(1) Aluminum logo plate
(2) 1/4 in.-20 x 1 in. hex head bolts
(2) 1/4 in.-20 nyloc nuts
(4) 1/4 in. flat washers
(4) Steel front lift brackets
(4) Steel rear lift brackets
(2) Sway bar brackets
(6) 10mm-1.50 x 65mm hex head bolts
(6) 10mm-1.50 x 55mm hex head bolts
(6) 8mm-1.25 x 25mm hex head bolts
(12) 10mm-1.50 nyloc nuts
(6) 8mm-1.25 nyloc nuts
(12) 10mm flat washers
(1) Instruction manual
2013 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 570 Full-Size
2015 Polaris Ranger 570 Crew Full-Size
2015 Polaris Ranger 570 Crew Full-Size EPS
2015 Polaris Ranger 900 XP
2015 Polaris Ranger 900 XP EPS
2015 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 900 XP Crew EPS
2015 Polaris Ranger 1000 DSL
2015 Polaris Ranger 1000 DSL Crew
2016 Polaris Ranger 570 Full-Size XP
2016 Polaris Ranger 900 XP
2016 Polaris Ranger 1000 DSL
2016 Polaris Ranger 900 XP High Lifter Edition
2016 Polaris Ranger 900-5 Crew EPS
2016 Polaris Ranger 900-6 Crew EPS
2016 Polaris Ranger 1000 DSL Crew
2017 Polaris Ranger 1000 XP
2017 Polaris Ranger 1000 XP Crew
2017 Polaris Ranger 1000 XP Crew EPS
2017 Polaris Ranger 1000 XP Crew High Lifter Edition
2017 Polaris Ranger 1000 XP EPS
2017 Polaris Ranger 1000 XP High Lifter Edition
2017 Polaris Ranger 900 XP
2017 Polaris Ranger 900 Crew
2017 Polaris Ranger 900 Crew EPS
2017 Polaris Ranger 900 EPS
2017 Polaris Ranger DSL
2017 Polaris Ranger DSL Crew
2018 Polaris Ranger DSL
2018 Polaris Ranger DSL Crew
2018 Polaris Ranger 900 XP
2018 Polaris Ranger 900 Crew
2018 Polaris Ranger 1000 XP Crew
2018 Polaris Ranger 1000 XP High Lifter Edition
2018 Polaris Ranger 1000 XP High Lifter Edition Crew
2019 Polaris Ranger 900 XP
2019 Polaris Ranger 900 Crew
